DoDocs API Documentation

Complete guide to integrating DoDocs document processing API into your applications. Extract data from invoices, receipts, and documents with simple REST API calls.

Get Started

API Overview

The DoDocs API provides programmatic access to our document processing capabilities, allowing you to extract structured data from various document types.

Document Types

Process invoices, receipts, bank statements, contracts, and more.

Real-time Processing

Get results via webhooks or synchronous responses.

Secure & Reliable

Enterprise-grade security with 99.9% uptime SLA.

Base URLs

Environment Base URL Purpose
API URL https://apis.dodocs.ai Live production environment
Dashboard https://dodocs.ai Web dashboard for API key management

Getting Started

Step 1: Create Your Account

Sign up for a DoDocs account at dodocs.ai to get started.

Step 2: Access Your Dashboard

After logging in, you'll see your main dashboard where you can manage documents and API keys.

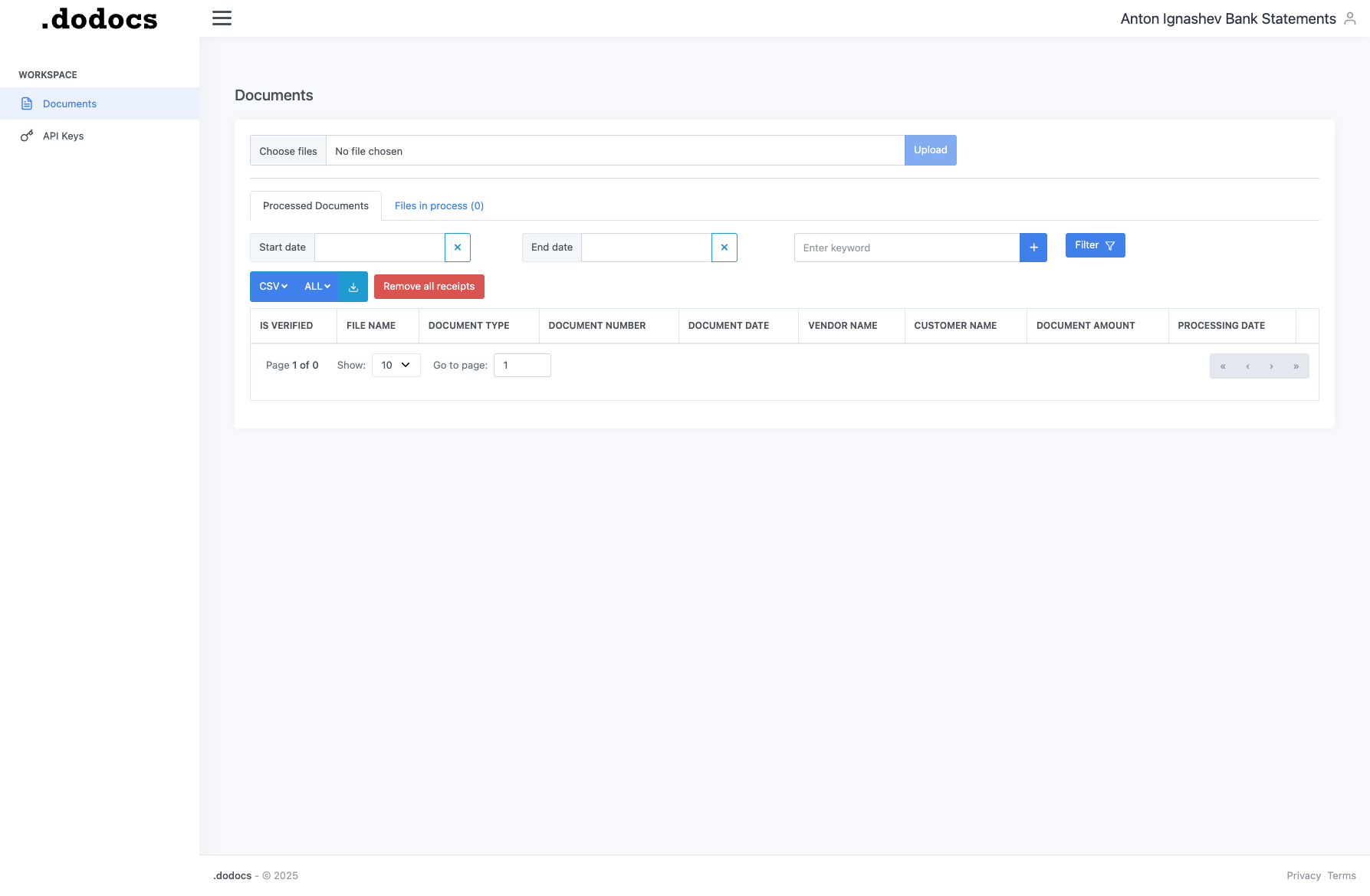

DoDocs Dashboard

The DoDocs dashboard showing your processed documents

Step 3: Generate API Key

Navigate to the API Keys section in the sidebar to create and manage your API keys.

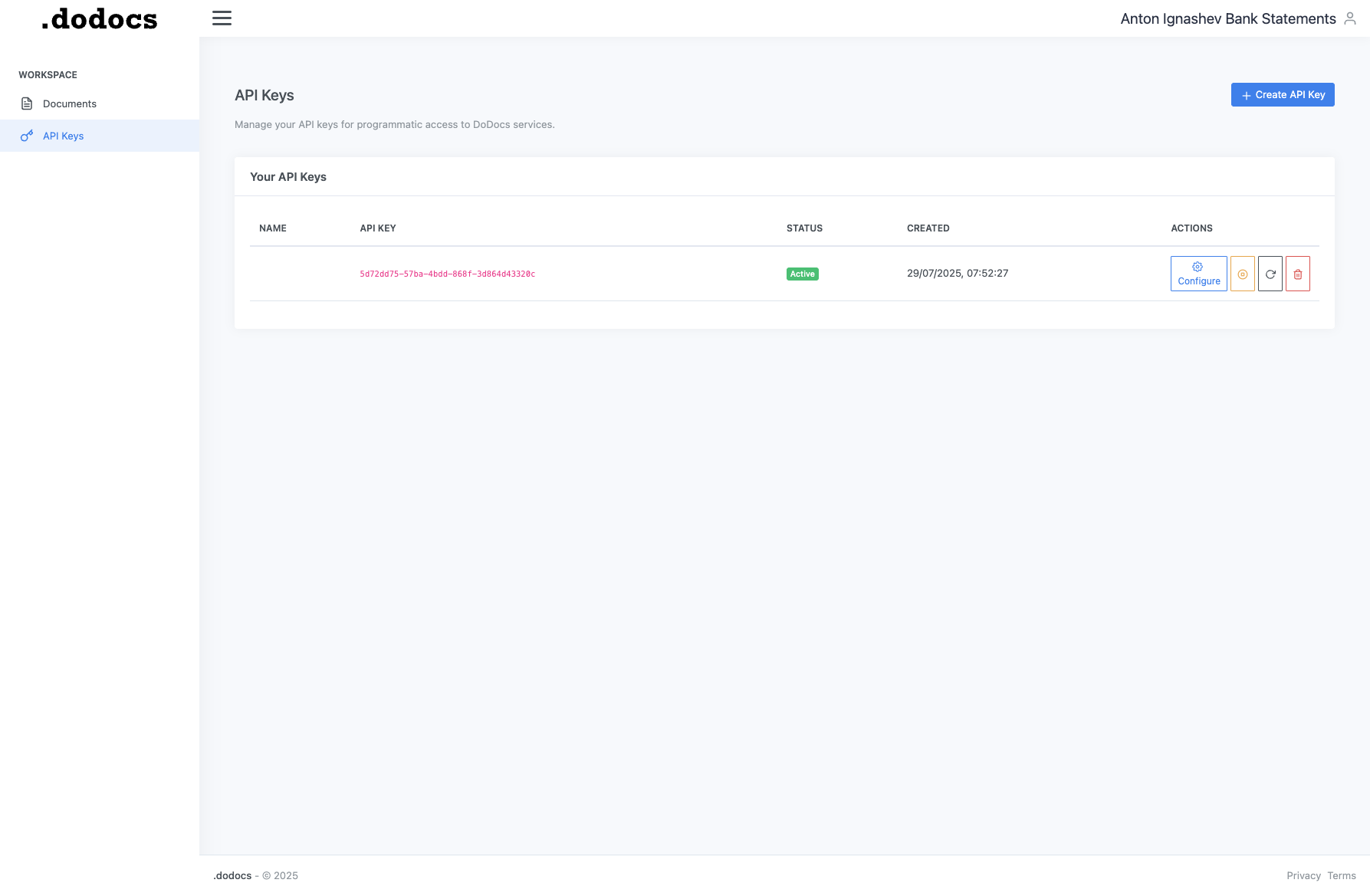

API Keys Page

The API Keys management page

Click on "Create API Key" to generate a new key:

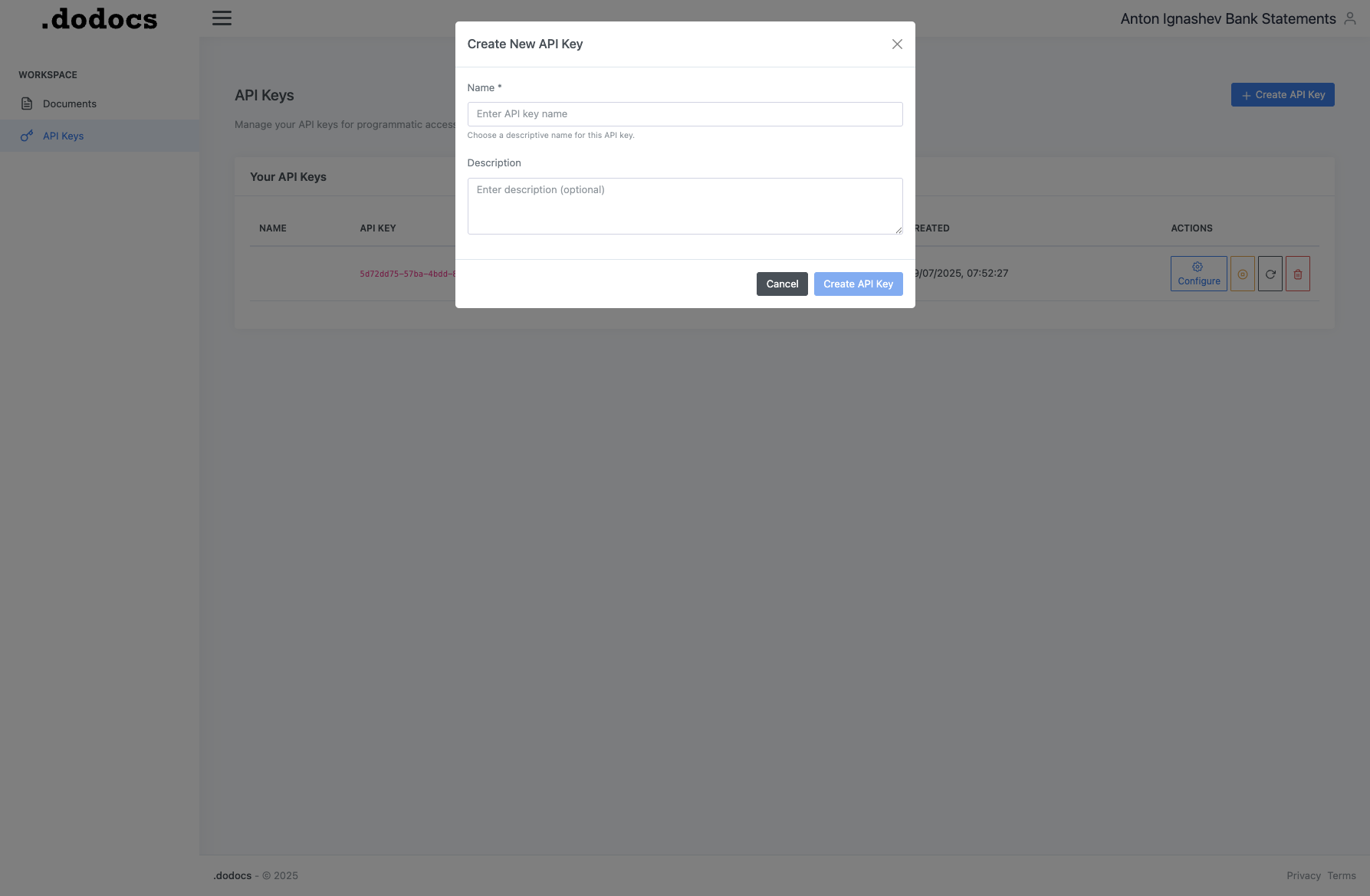

Create API Key Dialog

Creating a new API key

Important: Your API key will only be shown once. Copy and store it securely immediately after creation.

Step 4: Test Your API Key

Verify your API key is working with this simple test:

curl -X GET https://apis.dodocs.ai/api/v1/health \
  -H "Dodocs-API-Key: your_api_key_here"

Expected response:

{
  "status": "healthy",
  "timestamp": "2024-01-27T10:30:00Z"
}

Authentication

All API requests must include your API key in the Dodocs-API-Key header:

Dodocs-API-Key: your_api_key_here

API Key Format

  • Length: Typically 40-50 characters
  • Case sensitive: Keys must be used exactly as provided

Security Best Practices

Do:
  • Store API keys in environment variables
  • Use different keys for development and production
  • Rotate keys regularly (every 90 days recommended)
  • Use HTTPS for all API calls
Don't:
  • Commit API keys to version control
  • Include keys in client-side code
  • Share keys between applications
  • Use keys in URL parameters

Making API Calls

Document Upload Endpoint

POST /match-point/v1/upload

Upload documents for processing using multipart/form-data.

Request Parameters

Parameter Type Required Description
metadata JSON String Yes MUST be first field in request. Processing instructions and configuration (can be empty: {})
file File Yes The document file to process
Important: The metadata field must always be the first field in the multipart request. The order matters - add metadata first, then the file.

Metadata Options

{
  "clientReference": "ORDER-123",  // Optional: Your reference ID
  "urgent": true,                 // Optional: Priority processing
  "language": "en"              // Optional: Document language
}

// Or can be empty:
{}

File Requirements

Format Extensions Max Size
PDF .pdf 50 MB
Images .jpg, .jpeg, .png, .tiff 25 MB
Word .doc, .docx 25 MB
Excel .xls, .xlsx 25 MB
Text .txt, .csv 10 MB

Webhook Configuration

Webhooks allow you to receive real-time notifications when your documents are processed.

Setting Up Webhooks

Configure webhooks through the API key settings:

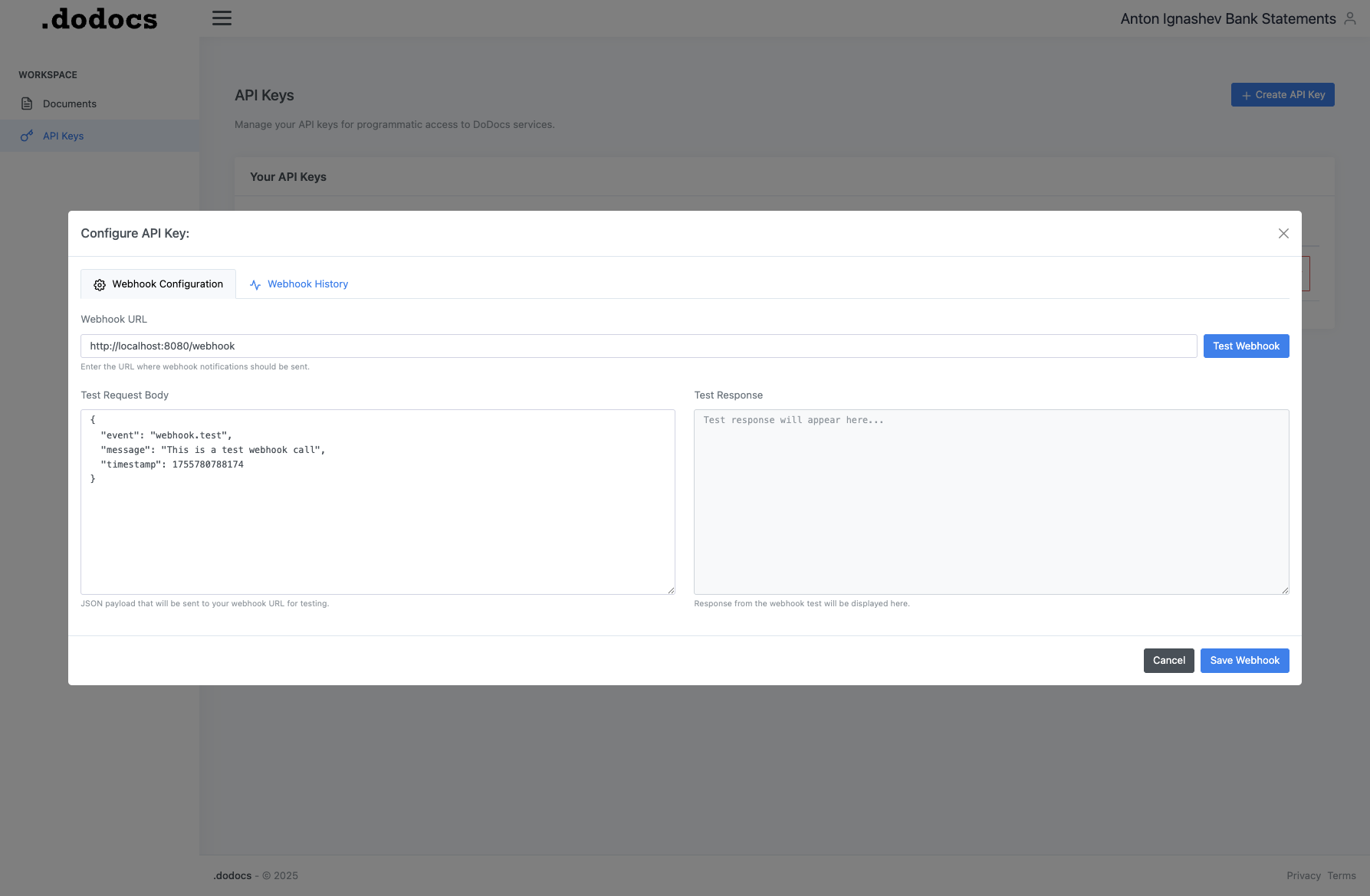

Webhook Configuration

Webhook configuration interface

Webhook Events

document.processed

Sent when document processing completes successfully.

{
  "requestId": "75193012-0885-4db7-b5ce-7506e169c80c",
  "documentData": "[{\"fileName\":\"Transaction_Summary.xls\",\"documentType\":\"Bank Statement\",\"transactions\":[{\"date\":\"2025-06-24\",\"account_number\":\"3708496929601\",\"amount\":18000.0,\"description\":\"INWARD REMITTANCE\",\"transaction_type\":\"Capital Injection\",\"balance\":28669.99}],\"account\":{\"account_number\":\"3708496929601\",\"account_type\":\"CURRENT ACCOUNT\",\"account_holder\":\"COMPANY NAME\",\"closing_balance\":\"28669.99\"}}]",
  "errors": []
}

document.failed

Sent when document processing fails.

{
  "requestId": "8b6683c7-e583-4fbc-aa23-5bf1d22d32eb",
  "documentData": "[]",
  "errors": [
    {
      "code": "EXTRACTION_FAILED",
      "message": "Unable to extract data from document",
      "details": "Poor image quality or unsupported format"
    }
  ]
}

Webhook Headers

Every webhook request includes these headers:

X-Webhook-Signature: sha256=abc123...
X-Webhook-Event: document.processed
X-Webhook-ID: unique-webhook-id
X-Webhook-Timestamp: 1706354400
Content-Type: application/json

Signature Verification

Always verify webhook signatures to ensure they come from DoDocs:

import hmac
import hashlib

def verify_webhook(payload, signature, secret):
    # Calculate expected signature
    expected_signature = hmac.new(
        secret.encode('utf-8'),
        payload.encode('utf-8'),
        hashlib.sha256
    ).hexdigest()

    # Compare signatures
    expected = f"sha256={expected_signature}"
    return hmac.compare_digest(signature, expected)
const crypto = require('crypto');

function verifyWebhook(payload, signature, secret) {
  const expectedSignature = crypto
    .createHmac('sha256', secret)
    .update(payload)
    .digest('hex');

  const expected = `sha256=${expectedSignature}`;

  return crypto.timingSafeEqual(
    Buffer.from(signature),
    Buffer.from(expected)
  );
}

Code Examples

Upload Document

import requests
import json

url = "https://apis.dodocs.ai/match-point/v1/upload"
api_key = "your_api_key_here"

# Prepare metadata (must come first in the request)
metadata = {
    'clientReference': 'INV-2024-001'
}
data = {
    'metadata': json.dumps(metadata)
}

# Prepare the file
files = {
    'file': ('invoice.pdf', open('invoice.pdf', 'rb'), 'application/pdf')
}

# Make the request
response = requests.post(
    url,
    headers={'Dodocs-API-Key': api_key},
    data=data,
    files=files
)

print(response.json())

Handle Webhook

from flask import Flask, request
import json

app = Flask(__name__)

@app.route('/webhook', methods=['POST'])
def handle_webhook():
    # Get the webhook data
    event = request.json

    # Process based on event type
    if event['event'] == 'document.processed':
        handle_processed(event['data'])
    elif event['event'] == 'document.failed':
        handle_failed(event['data'])

    # Return 200 OK immediately
    return '', 200

def handle_processed(data):
    print(f"Document processed: {data['extractedData']}")

def handle_failed(data):
    print(f"Processing failed: {data['errorMessage']}")

if __name__ == '__main__':
    app.run(port=3000)

Upload Document

const FormData = require('form-data');
const fs = require('fs');
const axios = require('axios');

const form = new FormData();
// Metadata must come first in the request
form.append('metadata', JSON.stringify({
  clientReference: 'INV-2024-001'
}));
form.append('file', fs.createReadStream('invoice.pdf'));

axios.post('https://apis.dodocs.ai/match-point/v1/upload', form, {
  headers: {
    'Dodocs-API-Key': 'your_api_key_here',
    ...form.getHeaders()
  }
})
.then(response => console.log(response.data))
.catch(error => console.error(error));

Handle Webhook

const express = require('express');
const app = express();

app.use(express.json());

app.post('/webhook', (req, res) => {
  const event = req.body;

  // Process based on event type
  switch(event.event) {
    case 'document.processed':
      handleProcessed(event.data);
      break;
    case 'document.failed':
      handleFailed(event.data);
      break;
  }

  // Return 200 OK immediately
  res.status(200).send('OK');
});

function handleProcessed(data) {
  console.log('Document processed:', data['extractedData']);
}

function handleFailed(data) {
  console.error('Processing failed:', data['errorMessage']);
}

app.listen(3000, () => {
  console.log('Webhook server running on port 3000');
});

Upload Document

curl -X POST https://apis.dodocs.ai/match-point/v1/upload \
  -H "Dodocs-API-Key: your_api_key_here" \
  -F 'metadata={"clientReference":"INV-2024-001"}' \
  -F "file=@invoice.pdf"

Test Webhook

# Use webhook.site for testing
# 1. Go to https://webhook.site
# 2. Copy your unique URL
# 3. Configure it in your DoDocs dashboard

# Or use ngrok for local testing
npm install -g ngrok
ngrok http 3000
# Use the HTTPS URL as your webhook endpoint
